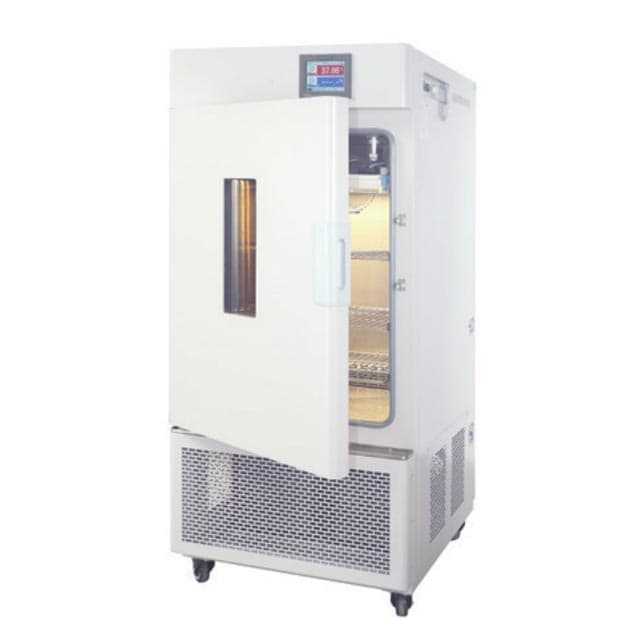

Buồng thử thuốc SM-LHH-80SD SM-LHH-150SD SM-LHH-250SD SM-LHH-80SDP SM-LHH-150SDP SM-LHH-250SDP SM-LHH-150GSD SM-LHH-150GSP SM-LHH-250GSD

◆Humanized design

● Newly fluoride-free design, high efficiency, energy saving.

● Micro-computer control, special sterilization stainless steel liner, semicircle design(Four corners), easy cleaning.

● Circular air duct, ensure the air stay even inside. A φ25mm testing hole at the right side of chamber.

◆Continuous operation qualified

● 2 sets imported compressor automatically switch, prevent the long time running defect from happening.

● Non-defrosting, continuous operation work normally.

◆Quality qualified

● Imported temperature and humidity controller/compressor/circular fan, stable running condition, security operation.

◆Security function

● Independent temperature warning system; sound-light alarm.

● Too high/too low and over temperature also trigger the alarm.

● Password Lock Screen, security control.

◆Imported humidity sensor

● Imported humidity sensor.

◆UV sterilization system.(Optional choise)

● The UV sterilization system disinfect virus and prevent the chamber from being pollution.

◆Illumination automatically detect and control(Optional)

● Breakthrough the defect of domestic drug stability test chamber, apply the illumination  sensor for detection, decrease the error from happening due to the modulator tube aging problem.

◆Data record and error display

● LCD screen will display the error information when the device breaking down.

● Printer or RS485 port inside; Temperature recording(Optional choice).

Programmable touch screen controller(Optional)

● Large LCD screen, easy programmed.

● Language switch on the operation menu, data display.

● 100 programs, 999 circular steps. Timing setting from 1~5999 min.

● After data and experiment parameters input, password lock screen runs, security control.

● P.I.D auto tuning function, amend the temperature and humidity change, accuracy control.

● RS-232 or RS-485 communication screen; Input process on computer, supervise the experiment process.

Comprehensive Drug Stability Test Chamber-Germany advanced techniques Execution and satisfying criteria:

Supported by the 2015 Pharmacopoeia drug stability test guidelines and GB/T10586-2006 relevant terms.

 ★Stability experimental condition:

In the ICH guideline, GMP and FDA define the function/performance and documents.

Europe/Japan/America agree to settle down common experiment for stability use. In order to collect information about the effectiveness of the drugs in different temperature, humidity and lighting environment.

★Storage conditions for long term stability test of reserved samples

Temperature: +25℃±2℃

Humidity: 60±5%RH

Time: 12 months

★Storage conditions for speed up stability test

Temperature: +40℃±2℃

Humidity: 75±5%RH

Time: 6 months

Illumination in highlight condition: 4500±500LX

The relevant data above is just for reference.

Comprehensive Drug Stability Test Chamber-Germany advanced techniques Technical parameters:

Name	Drug stability test chamber			Comprehensive drug  stability test chamber	Highlight drug stability  test chamber
Model	SM-LHH-80SD	SM-LHH-80SDP		SM-LHH-150GSD	SM-LHH-150GP
	SM-LHH-150SD	SM-LHH-150SDP		SM-LHH-150GSP	SM-LHH-250GP
	SM-LHH-250SD	SM-LHH-250SDP		SM-LHH-250GSD	SM-LHH-400GP
				SM-LHH-250GSP
Temperature control range	0~65℃			Without illumination: 0～65℃;
				With illumination: 10～50℃
Temperature fluctuation	±0.5℃/±2℃
Humidity control range/	35~95%RH/±3%RH				None
Humidity deviation
Illumination intensity	None			0-6000LX adjustable≤±500LX
				(Stepless adjusted)
Setting time range	Each step 1~99 hrs
Temperature and humidity control	Balanced temperature and humidity control				Balanced temperature control
Refrigerating system	2 sets imported compressor automatically switch
Controller	Programmable  LCD controller		Programmable touc h screen controller	GSD：Programmable   LCD controller	Programmable LCD controller
				GSP：Programmable   touch  screen controller
Sensor	Pt100 platinum resistor Capacitive sensor				Pt100 platinum resistor
Operation ambient temperature	RT+5～30℃
Power supply	AC220V±10%   50HZ
Input power	2000W/2100W/2300W			2250W/2250W/2500W/2500W	1450W/1700W/3200W
Volume	80L		80L	150L	150L
	150L		150L	250L	250L
	250L		250L		400L
Liner dimension (W×D×H mm)	400×400×500		400×400×500	550×405×670	550×405×670
	550×405×670		550×405×670	600×500×830	600×500×830
	600×500×830		600×500×830		700×550×1140
Outside dimension (W×D×H mm)	550×790×1080		550×790×1080	690×805×1530	690×805×1530
	690×805×1530		690×805×1530	740×890×1680	740×890×1680
	740×890×1680		740×890×1680		950×850×1850
Loading Bracket(Standard)	2/3/3 pcs		2/3/3 pcs	3/3 pcs	3/3/4 pcs
Embedded printer	standard configuration
Security system	Over temperature protection, water shortage protection, wire alarm system
Remarks	1.SD、SDP、GSD、GSP、GP series, embedded printer;
	2.Pick printer on touch screen controller、 RS485 connector or USB connector two-out-three.
	Pick LHH-80SD、LHH-150SD/GSD，LHH-250SD/GSD printer or RS485 connector one-out-two.
	3.GP、GSD、GSP series, manual stepless adjusted, standard with illumination detector.
	4.GP/GSD/GSP series can be installed 2 layers illumination device.
	5.LHH-80SD、LHH-80SDP is one set imported whole sealing compressor

※Under the idle condition, Performance Parameters tested like this:

Environment temperature is 20℃, environment humidity is 50% RH

※Provide 3Q verification and calibration services(Optional choice):

※Provide the IQ/OQ/PQ service to customers, meet the drug stability test chamber performance and requirement. Guarantee the highly accuracy of temperature and humidity data.(Optional)

※Provide the authority third party testing report in shanghai.(Optional choice)
