In a vacuum drying oven, the thermal processes occur in an airtight chamber where a desired level of vacuum has been applied using an external vacuum pump. With a vacuum oven the entire application can take place under vacuum or a controlled atmosphere can be created through the introduction of an inert gas. Vacuum ovens can help in the prevention of surface reactions (such as oxidation), decontaminating samples (removing lubricants for example) as well as for speeding up the out gassing process.

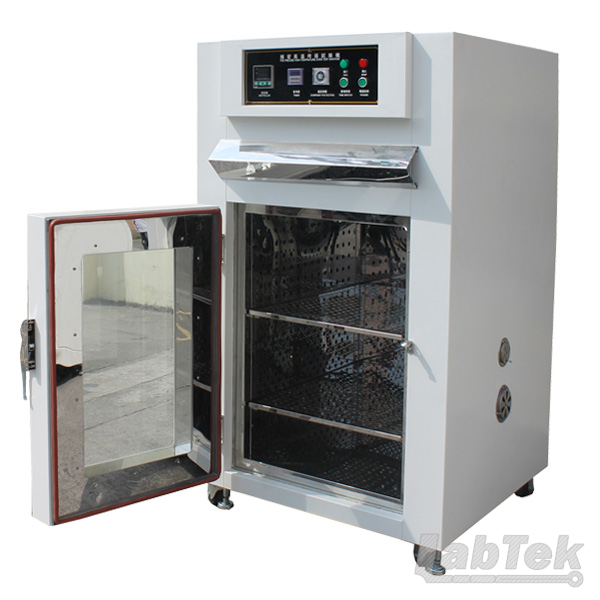

Laboratory drying oven details
New secondary over-temp protection with visual alarm
•Fine tuning SS304 needle valve with graduation for accurate and repeatable inert gas/air backfill or chamber pressure control.
•The standard oven can hold up to 5 plates. Contact us if you need more.
•Easy-to-clean and corrosion resistant SS304 mirror surface internal vacuum chamber.
•Intelligent temperature controller with advanced PID algorithm maintains high accuracy (+/- 1°F or 0.5°C) in a wide dynamic range of 480°F (250°C).
•Temperature display can be switched between Celsius and Fahrenheit.
•Electro-plated cast aluminum handle which is almost unbreakable.
•Mechanical vacuum gauge with stainless steel 304 Bourdon tube provides more accurate reading, longer gauge life and minimizes shipping damage.
•Double scale vacuum reading in bar and inHg.
•We use aluminum plates, which has 12x better thermal conductivity than stainless steel.
•Dual layer observation window with adaptive 1/2″ tempered safety glass, as well as force-adjustable door handle, to maintain constant vacuum level even for long-term operation.
•A thick layer of thermal insulation outside vacuum chamber for low energy consumption.
•Electrical components are isolated from the inner chamber for the protection of user.
•Various options (programmable controller, independent temperature switch, digital pressure indicator, etc) for your own customized system.
•Modular design for easy and cost-effective maintenance and future upgrades.
•Built-in timer of 9999 minutes/hours.
•All ovens come with one year warranty and lifetime components and service support.
•Free phone and email customer support/consultation from our application engineers
