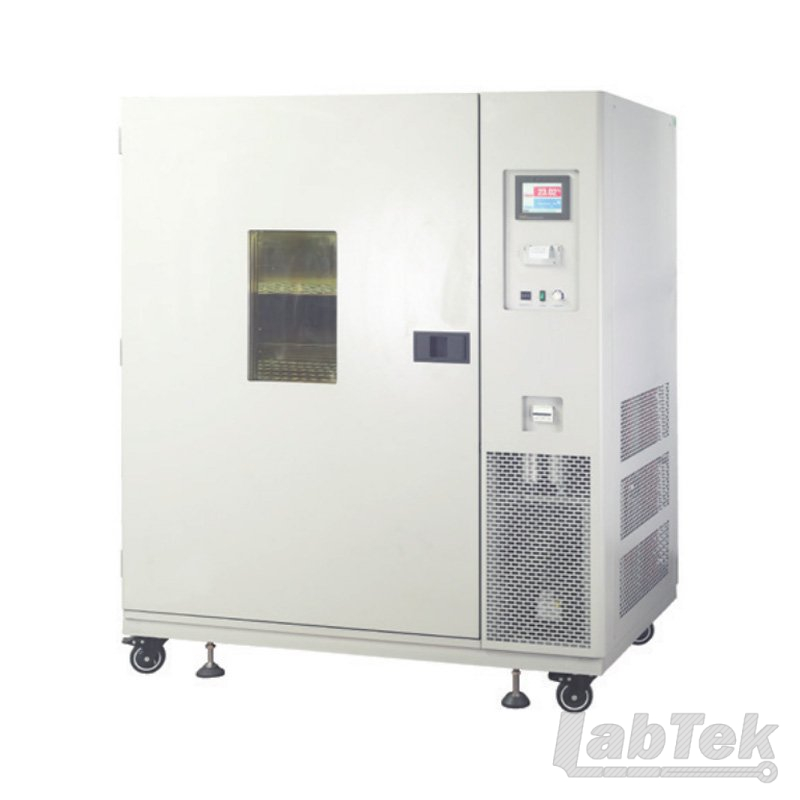

Large drug stability test chamber
1. Product Name: Large drug stability test chamber
2.Large drug stability test chamber product model:
SM-LHH-500SD、SM-LHH-500SDP、SM-LHH-800SD、SM-LHH-800SDP、SM-LHH-1000SD、SM-LHH-1000SDP、SM-LHH-1500SD SM-LHH-1500SDP、SM-LHH-500GSD,LHH-500GSP、SM-LHH-800GSD、SM-LHH-800GSP、SM-LHH-1000GSD、SM-LHH-1000GSP、SM-LHH-1500GSP
3.Large drug stability test chamber Applications:
The scientific method to create a drug for a long time to failure evaluation of stable temperature, humidity and light environment for pharmaceutical enterprises to accelerate drug test, long-term test, high humidity and strong light test, is the best choice for pharmaceutical companies and drug stability test program.
4.Large drug stability test chamber product features:
(1) New fluorine free design, high efficiency, low energy consumption, and promote energy saving
(2) Adopt special stainless steel inner container, four corners semicircle arc design, easy to clean, easy to operate
(3) Microcomputer servo controller, digital temperature and humidity display (sd/gsd has this function)
(4) LCD touch screen controller, all functions are displayed on the screen in graphic and text form, and can observe the machine running state by curve diagram. (sdp/gsp has this function)
(5) Continuous operation guarantee: two sets of fully enclosed compressor units are automatically switched to ensure continuous operation of the equipment
(6) Continuous operation without defrosting, avoid in the process of using, because the defrosting temperature and humidity generation box fluctuations.
(7) Imported humidity sensor is used to avoid the trouble caused by frequent change of wet belt in traditional dry and wet bulb sensor
(8) Gsd/gsp series with illumination stepless regulation function.
5.Large drug stability test chamber Security function:
(1) When the box door is opened, the breeze circulation and heating are stopped automatically, and there is no disadvantage of temperature overshoot
(2) The speed of the circulation fan is automatically controlled to avoid the volatilization of the sample caused by too high wind speed
(3) With password lock screen function, to avoid non experimental personnel misoperation
(4) Independent temperature alarm system, sound and light alarm, prompting the operator
(5) Temperature deviation alarm, compressor overheating, overload, over voltage protection and water shortage protection
(6) Wired monitoring alarm system (sdp/gsp series has this function)
6. Large drug stability test chamber Technical parameters
| drug stability test chamber | drug stability test chamber（Without light control） | |||
| model | LHH-500SD | LHH-800SD | LHH-1000SD | LHH-1500SD |
| LHH-500SDP | LHH-800SDP | LHH-1000SDP | LHH-1500SDP | |
| Temperature control range |
0～65℃ | |||
| Temperature fluctuation / uniformity | ±0.5℃/±2℃ | |||
| Humidity range / deviation | 35～95%RH/±3%RH | |||
| light | without | |||
| refrigeration system | Two sets of imported independent, imported, fully closed compressor automatic switching | |||
| controller | SD series: programmable liquid crystal controller | |||
| SDP series: programmable touch screen controller | ||||
| sensor | Temperature: PT100, platinum resistance, humidity: capacitive humidity sensor | |||
| operating ambient temperature | RT+5～30℃ | |||
| power | AC220V 50HZ | AC380V 50HZ | ||
| input power | 3750W | 7150W | 7150W | 10600W |
| volume | 500L | 800L | 1000L | 1500L |
| inner size(mm) | 670×725×1020 | 800×590×1650 | 1050×590×1650 | 1550×590×1650 |
| W×D×H | ||||
| outside size(mm) | 850×1100×1930 | 1360×890×2000 | 1610×890×2000 | 2110×890×200 |
| W×D×H | ||||
| Carrier tray (standard) | 4 ps | |||
| safety device |
Compressor overheating protection, fan overheating protection, over temperature protection , compressor overpressure protection, overload protection, water shortage protection, cable monitoring alarm system |
|||
| drug stability test chamber | drug stability test chamber with light control | ||
| model | LHH-500GSD | LHH-800GSD | LHH-1000GSD |
| LHH-500GSP | LHH-800GSP | LHH-1000GSP | |
| LHH-1500GSP | |||
| Temperature control range | without light：0～65℃ with light：10～50℃ | ||
| Temperature fluctuation / uniformity | ±0.5℃/±2℃ | ||
| Humidity range / deviation | 35～95%RH/±3%RH | ||
| light | 0-6000LX≤500LX | ||
| refrigeration system | Two sets of imported independent, imported, fully closed compressor automatic switching | ||
| controller | GSD series: programmable liquid crystal controller | ||
| GSP series: programmable touch screen controller | |||
| sensor | Temperature: PT100, platinum resistance, humidity: capacitive humidity senso | ||
| operating ambient temperature | RT+5～30℃ | ||
| power | AC220V 50HZ | AC380V 50HZ | |
| input power | 3910W | 7350W | 7350W/10800W |
| volume | 500L | 800L | 1000L |
| 1500L | |||
| inner size(mm) | 670×725×1020 | 800×590×1650 | 1050×590×1650 |
| W×D×H | 1550×590×1650 | ||
| outside size (mm) | 850×1100×1930 | 1360×890×2000 | 1610×890×2000 |
| W×D×H | 2110×890×2000 | ||
| Carrier tray (standard) | 4 | ||
