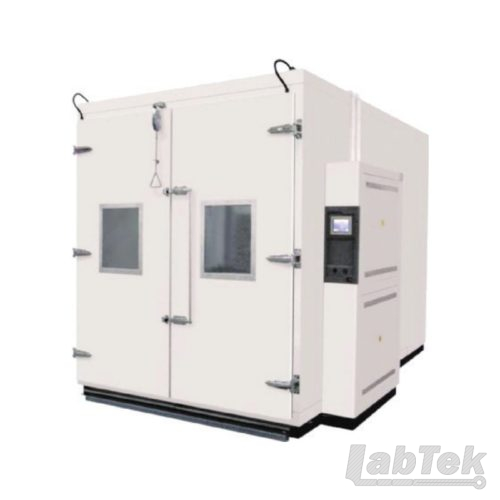

1. Product name: Walk-in drug stability test chamber
2. product model : SM- LHH- series
3.Walk-in drug stability test chamber Applications:
(1) The scientific method to create a batch of drug failure evaluation for a long time and stable temperature, humidity and light environment for pharmaceutical enterprises to accelerate drug test, long-term test, high humidity test, is the best choice for large quantities of drug storage and stability tests of large pharmaceutical companies, convenient bulk drug for long-term resistance to humidity cycling test.
4. Walk-in drug stability test chamber product features：
(1) Import touch type color LCD operating panel, switch in English, 100 programs for users to set / save, display all kinds of running data
(2) It adopts tmhm balanced temperature regulation and humidity control method. It has stable operation, temperature control, humidity control, accurate and safe and reliable
(3) Unique air circulation system, ensure the temperature and humidity distribution in the laboratory is even
(4) Perfect safety protection device to ensure the operation of products more safe and reliable
(5) Data recording and fault diagnosis display, when the test box failure, dynamic display will appear fault information. Can be connected to a printer or a 485 communication interface, computer software running real-time record of temperature and humidity time curve, provide a strong guarantee for the test data storage and playback.
(6) The anti lock device can be safely in and out of the test room
5. Walk-in drug stability test chamber Technical Parameters
| model | SM-LHH-series | |
| inner size | 2cube-250 cube（Customized as required） | |
| performance | system | （BTHC） |
| temperature range | 0～65℃ | |
| humidity range | 40～95%RH(Install dehumidification device, humidity up to 20%rh） | |
| temperature fluctuation | ±0.5℃ | |
| temperature departure | ≤±2.0℃ | |
| Humidity deviation | ±3.0%RH | |
| heating-up time | 1～2℃/min | |
| temperature fall time | 0.5～1℃/min | |
| Cooling system | Dual compressor refrigeration dual system | |
| controller system | temperature and humidity controller | Color LCD touch screen display |
| Operation interface | liquid-crystal display | |
| workings | Fixed value operation, program operation | |
| resolution ratio | ±1%RHTemperature: + 0.1 DEG C, humidity: + 1%rh | |
| import | PT100 Temperature: PT100 humidity: capacitive humidity sensor | |
| control method; | pid control | |
| communication function | RS-485、RS-232C | |
| power | AC380 50HZ | |
