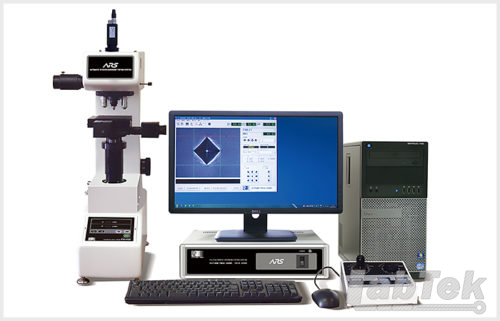

Most Advanced System with High-speed Sample Profile Memory Function.
High-speed,High-accuracy,High-repeatability,Easy-operation,Improved Read Power.
More Reliable for Large quantities of testing without human error.
- A series of measurement operations : Continuous Indentation～Focusing～Reading～Data Record :Just by selecting a measurement pattern, all testing will be fully-automatic with high speed.
- Various Measurement Patterns…
- Intelligent Sample Profile Memory Function allows complicated Random measurements or Teaching Measurement along with the edge of specimen － Standard Function
- Various Patterns can meet customers’ requirements : Straight Line / Zigzag / Circle /Arc / Line Set / Random / Matrix / Teaching / etc.
Teaching Pattern : 1 Line
Teaching Pattern : 3 Lines
MatrixPattern
- Capability of Reading unclear Indents on un-mirror surface has been improved by more advanced Data Processing Software
Mirror Surface
Etched Surface
Scratched Surface
- Various Data Output Format and Statistical Processing…
Display for Case Depth
Display for
Measurement Data
Display for Color Profile
Picture linked with Hardness
Values on Matrix Test Pattern
- Case Depth of indicated HV Hardness can be displayed instantaneously on the Chart after continuous Measurements on Carbonized Layer.
- Various Data Output available － Measurement Data, Hardness Distribution Chart, Case Depth, Max. Value, Min.
Value, Mean Value, Dispersion, Standard Deviation, Coefficient of Variation, OK-NG Criteria, Conversion Data, etc. - Display and Output Color Profile Picture linked with Hardness Values – Standard Function
