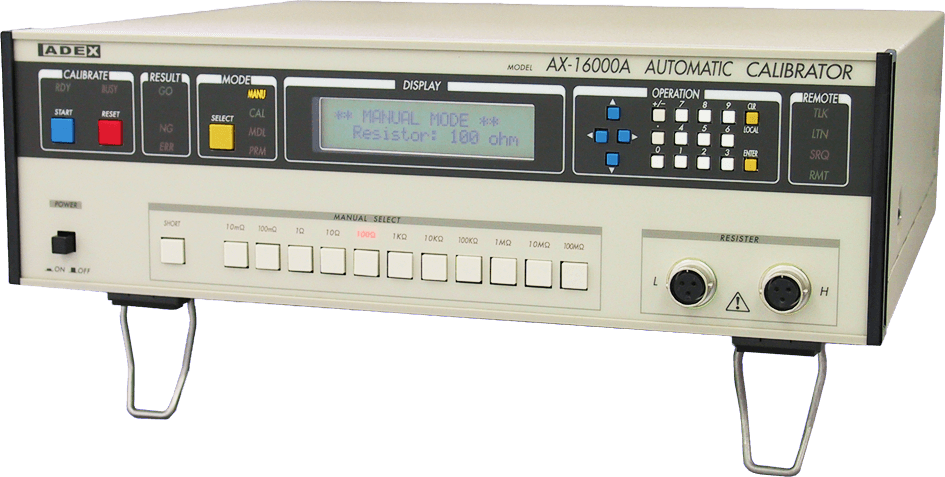

Máy Kiểm tra điện trở kỹ thuật số AX-16000A Adexaile ADEX

Easily to auto calibration, for anybody

?

● Auto calibration for digital resistance checker [AX-162D/AX-162E], one touch, high accuracy

● Unnecessary for standard resistance external attached

● Unnecessary for mastering calibration, experience, possible to calibrate easily and quick

● Possible to use as a standard resistance, high accuracy, high stability

● Possible to transfer printing out before calibration, after calibration

Specifications

Reference resistance value	Accuracy	Rating	Temperature coefficient
SHORT	less than 1μΩ	within 0.5A	－－－－
10mΩ	less than ±0.02％	within ±10ppm/℃
100mΩ	less than ±0.01％
1Ω	less than ±0.005％	within ±5ppm/℃
10Ω	within 1W
100Ω
1kΩ	within 0.5W
10kΩ	within 50V
100kΩ
1MΩ
10MΩ
100MΩ	less than ±0.03％

Time required for calibration	[(Tm×no1＋Tm×no2＋Tm×no3＋Tm×nf＋Tm×ns＋600) ×10 Range] msec Tm: measuring time of calibrated measurement instrument ［SLOW］ n01～n03: The number of tried for zero point calibration nf: : The number of tried for absolute value measurement of 10000 counts ns: : The number of tried for absolute value measurement of 1000 counts
Operation condition	[Temp.] ＋10℃～＋40℃, [Humidity] less than 70％
Power supply	AC 85V～265V, 50/60Hz, about 15VA
Outer dimension	333 (W) × 99 (H) × 300 (D) mm  (excluding protruding parts such as rubber legs, etc.)
Weight	about 3.5kg

The Outline

AX-16000A is auto calibration to calibrate measuring instrument AX-162D, high-speed measurement major unit of tip resistor, totally automatic (one touch).

It can be printed out the date before calibration, and after calibration connecting to our product AX-80B printer, also can be brought to realization to simplify keeping a date for periodical calibration.
