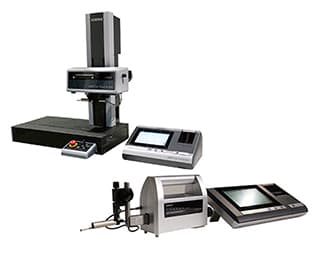

SURFCOM TOUCH 35/40/45/50/550
Excellent Operationability and Sophisticated User Interface
Features
Palm-sized tracing drivers selectable for workpieces and measurement areas
SURFCOM TOUCH 35 / 40 / 45
Small and light tracing drivers selectable for application
In addition to horizontal surface, measurement on vertical surface with the driver and in narrow areas with transverse trace can be performed.
Skid-measurement-type for measurement with different attitudes.
35(Standard type)
The standard-type with different attitudes to measure horizontal, inclined, vertical and ceiling surfaces.
40(Retraction type)
Retract-type that reduces damage to the stylus and pickup by raising the pickup while waiting for measurement or at ending. It can be used as a detector incorporated into an automatic machine.
45(Horizontal tracing type)
The transverse trace-type where the pickup moves sideways. Narrow areas, such as crankshaft pins and journals, that were difficult to measure before can now be measured.
High-level compact-type model in the SURFCOM TOUCH series with high resolution and straightness
SURFCOM TOUCH 50
Extended Z-axis measurement range from 800 to 1,000 μm (25% increase)
The high performing pickup with a measurement range of 1,000 μm and a Z-axis minimum resolution of 0,0001 μm allows for wide-range and high resolution skidless measurement. No need to consider measurement range.
In addition to flat surface, the roughness or waviness on undulating surface such as stepped or round surface can be evaluated with one trace. Leveling and zeroing before measurement can also be performed easily.
Suited for measuring cylindrical workpieces. A tracing driver can be placed on workpiecies by using an optional roll footing.
An optional compact measurement stand for measuring high workpieces or measuring with jigs.
High-end model in the SURFCOM TOUCH series with an electric column offering high accuracy and size variation
SURFCOM TOUCH 550
Equipped with a high performing pickup having high resolution and wide range.
It offers high flexibility where granite base size, column height, and X-axis drive range can be selected depending on needs.
Extended Z-axis measurement range from 800 to 1,000 μm (25% increase)
The high performing pickup with a measurement range of 1,000 μm and a z-axis minimum resolution of 0,0001 μm allows for wide-range and high resolution skidless measurement. No need to consider measurement range. In addition to flat surface, the roughness or waviness on undulating surface such as stepped or round surface can be evaluated with one trace. Leveling and zeroing before measurement can also be performed easily.
Size variations for various types of workpieces
SURFCOM TOUCH 550 allows users to select a combination of the size of the granite base, the height and type of the column and the drive range in the X axis direction.
This meets diverse customer needs such as “we want to reduce the installation space”, “we want to reduce initial costs” , “we want to measure high workpieces” and “we want to measure large flat workpieces”.
SURFCOM TOUCH Common Functions
Easy-to-use screen
An amplifier with a 7-inch wide touch panel and easy-to-use new interface provides higher operability.
Easy-to-use operation eliminates the need of instructions.
Multi-language support available worldwide
20 Asian and European languages including Japanese, English and German are provided as standard. Language can be easily changed with one touch.
Easy-to-follow user’s guide/quick reference guide
The user’s guide is easy to understand like that for home appliances.
A quick reference guide showing basic operation procedures is also available so that users do not need to create written procedures.
USB/micro USB ports as standard equipment
15 measurement conditions and 20 measurement results can be stored in the SURFCOM TOUCH amplifier.
More conditions and results can be stored by connecting a USB memory to the standard USB port.
The amplifier is also equipped with a micro USB port.
Measurement data can be transferred to the computer when connected with a USB cable, and a simple inspection report can be created using attached SupportWare II.
Measurement results can be printed quickly
The dedicated printer allows for quick printing of measurement results.
Of course, any measurement data saved in the amplifier or USB memory can be output.
• TOUCH 550 has a built-in printer.
• TOUCH 35 to 50 have two models: with/without printer
Without printer model can be connected with an external printer unit.
